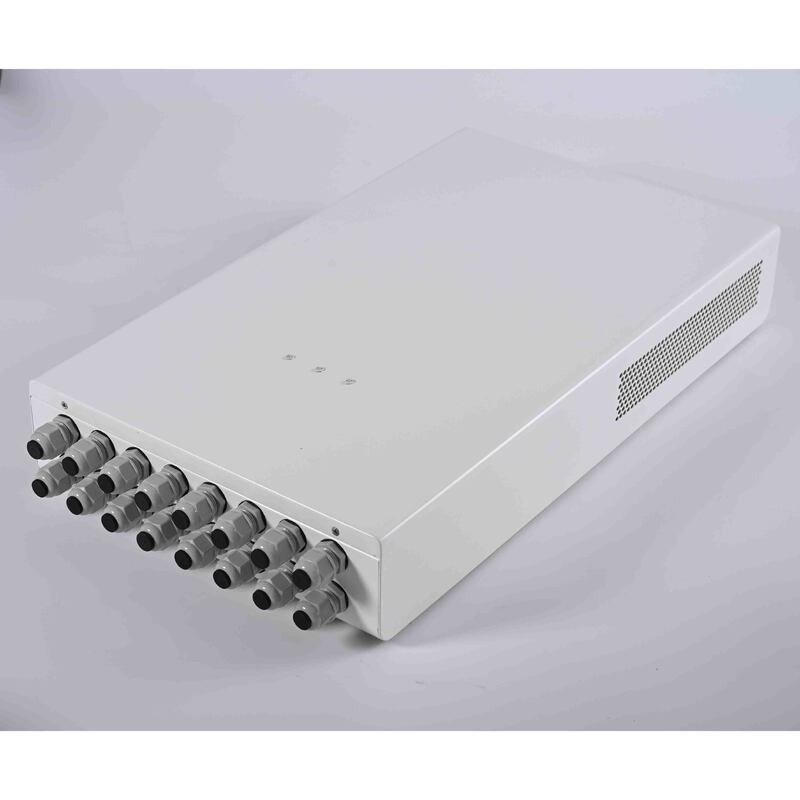

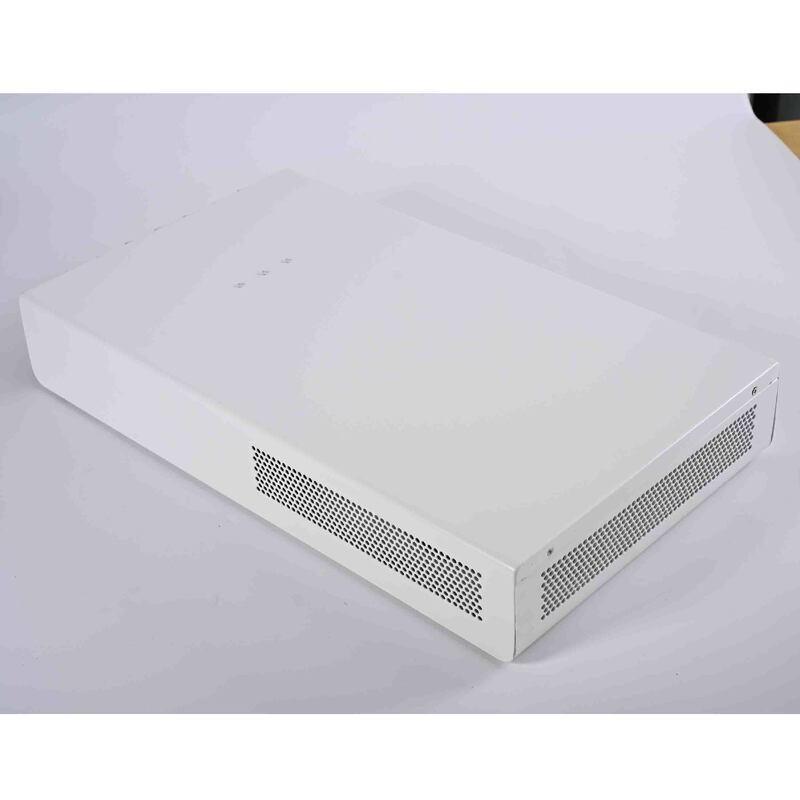

3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon

3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon

3000W Low Noise Transformer

SELV System Low Noise Transformer

Carbon SELV Transformer

Place of Origin:

CN

Brand Name:

shinergy

Certification:

CE

Model Number:

SL3000-36/7

Chat Now
Request A Quote
3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon 3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon 3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon
Product Details
Name::
Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Extremely Quiet, AP/on Wall, CE Cert, SELV Heating System Film/paint/carbon
Inrush Current::
Zero Inrush Current, 16A (B Type) Fuse
Transformer::
Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized
Cooling::
AN (no Fan) , Noise Level ≤20dB
Mounting::
AP(on Wall) Mounting, Spring-type Terminal
After Service::
Module&compatible Design, Remote Problem Diagnosis
Certificate::
CE Certificate
Cooperation::
Professional Tailor-made Product, ODM
Highlight:

3000W Low Noise Transformer

,

SELV System Low Noise Transformer

,

Carbon SELV Transformer

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Packaging Details
carton and pallet
Delivery Time
4-6 weeks
Payment Terms
T/T
Supply Ability
5k pcs/month
RELATED PRODUCTS
Good price 2000W Low Noise Power Supply Spring Type Terminal 24V 30V 36V 42V 48V CE Certified online

2000W Low Noise Power Supply Spring Type Terminal 24V 30V 36V 42V 48V CE Certified

Chat Now
Good price SELV Heating System Low Noise Transformer 2400W 24V 30V 36V 42V 48V online

SELV Heating System Low Noise Transformer 2400W 24V 30V 36V 42V 48V

Chat Now
Good price 2800W PSU Transformer Extremely Quiet AP / On Wall Built In Soft Start Function online

2800W PSU Transformer Extremely Quiet AP / On Wall Built In Soft Start Function

Chat Now
Good price 3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon online

3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon

Chat Now
CONTACT US
eva.peng@fshinergy.com
Chat Now
Product Description
3000W Low Noise Transformer for SELV Heating Systems
3000W Power Supply/Transformer designed for SELV heating system films, paints, and carbon applications. Available in 24V/30V/36V/42V/48V configurations with extremely quiet operation, AP/on-wall mounting, and CE certification.
Physical Specifications
Dimensions345 × 100 × 635 mm
Weight37 kg
Technical Specifications
Electrical Parameters
Power Range3000VA
Input Voltage120V/220V/230V/240V AC (Customizable)
Output Voltage24V/30V/36V/42V/48V AC (Customizable)
TransformerBuilt-in isolated toroidal transformer with copper/aluminum winding (Customizable), thermistor (NTC), Class B/F
Inrush Current LimitationBuilt-in Soft Start function, Zero inrush current
Fuse/MCB16A (B type), for transformers up to 3500VA
IntelligenceIntegrated micro control unit (MCU)
Operation & Protection
Control ModeAll outputs switched on/off together
ProtectionOver voltage, over load, over heat, short circuit, wire break (protects both primary and each output in secondary)
DisplayLED indicators: green (Power on), yellow (Heating), red (Faults)
CoolingAN (no fan)
Noise Level≤20dB
IP GradeIP20
MountingAP (on wall)
ConnectionSpring-type terminal (clamp terminal)
Quality & Reliability
Service & Support
  • Modular & compatible design with common components
  • Remote problem diagnosis capability
  • Fast and effective service response
Performance & Standards
  • Switch on/off cycles: >100,000 times
  • Safety Standards: EN61558-1, EN61558-2-6, EN60335-1
  • EMC Standards: EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
  • Certifications: CE, UKCA
