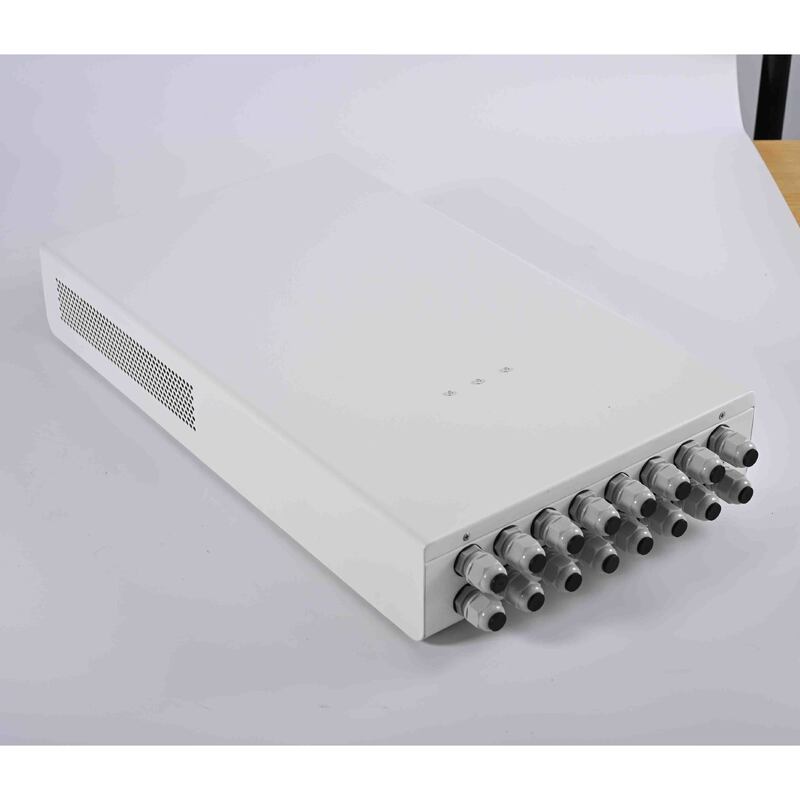

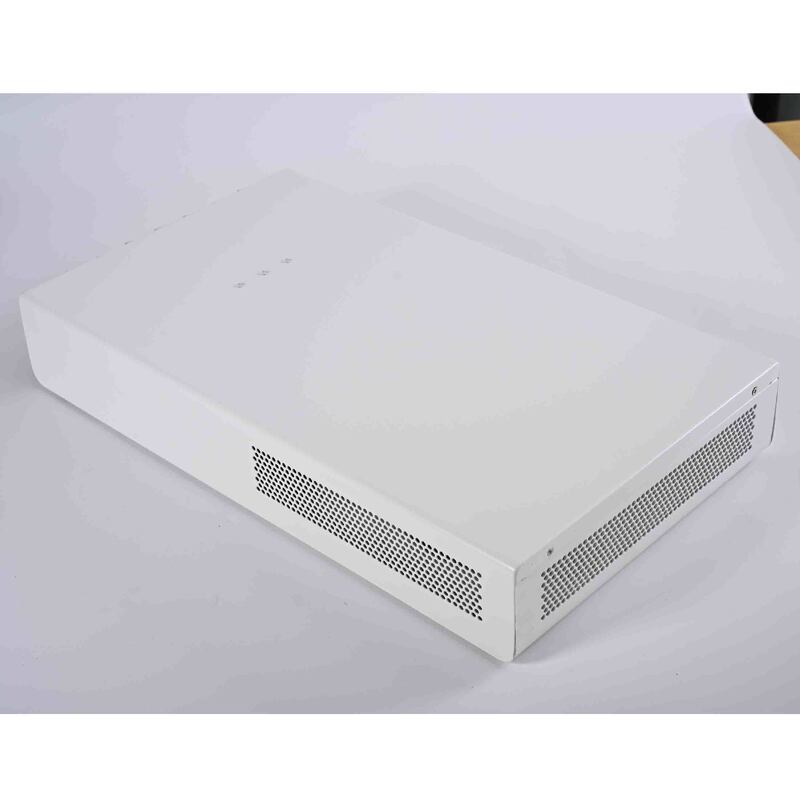

Name: 2600W Power Supply Transformer 24V 30V 36V 42V 48V Extremely Quiet AP / On Wall
Brand: Foshan Shinergy Technology Co., Ltd
SKU: SL2600-36/5
Availability: InStock

Home > Products > Low Noise Transformer >

2600W Power Supply Transformer 24V 30V 36V 42V 48V Extremely Quiet AP / On Wall

2600W Power Supply Transformer

Extremely Quiet Power Supply

AP Power Supply Transformer

Place of Origin:

Brand Name:

shinergy

Certification:

Model Number:

SL2600-36/5

Chat Now

Request A Quote

Product Details

Name::

Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Extremely Quiet, AP/on Wall, CE Cert, SELV Heating System Film/paint/carbon

Inrush Current::

Zero Inrush Current, 16A (B Type) Fuse

Transformer::

Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized

Cooling::

AN (no Fan) , Noise Level ≤20dB

Mounting::

AP(on Wall) Mounting, Spring-type Terminal

After Service::

Module&compatible Design, Remote Problem Diagnosis

Certificate::

CE Certificate

Cooperation::

Professional Tailor-made Product, ODM

Highlight:

2600W Power Supply Transformer

Extremely Quiet Power Supply

AP Power Supply Transformer

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Packaging Details

carton and pallet

Delivery Time

4-6 weeks

Payment Terms

T/T

Supply Ability

5k pcs/month

2000W Low Noise Power Supply Spring Type Terminal 24V 30V 36V 42V 48V CE Certified

Chat Now

SELV Heating System Low Noise Transformer 2400W 24V 30V 36V 42V 48V

Chat Now

2800W PSU Transformer Extremely Quiet AP / On Wall Built In Soft Start Function

Chat Now

3000W Low Noise Transformer AP / On Wall For SELV Heating System Film / Paint / Carbon

Chat Now

eva.peng@fshinergy.com

Chat Now

Product Description

2600W Power Supply Transformer

High-performance 2600W power supply unit with multiple voltage outputs (24V/30V/36V/42V/48V), featuring extremely quiet operation and wall-mounted design. Certified for SELV heating systems including film, paint, and carbon applications.

Dimensions: 345 × 100 × 635 mm
Weight: 34 kg

Technical Specifications

Power Range	2600VA
Input Voltage	120V/220V/230V/240V AC (Customizable)
Output Voltage	24V/30V/36V/42V/48V AC (Customizable)
Transformer	Built-in isolated toroidal transformer with copper/aluminum winding, thermistor (NTC), Class B/F
Inrush Current Limitation	Built-in Soft Start function, Zero inrush current
Fuse/MCB	16A (B type), suitable for transformers up to 3500VA
Intelligence	Integrated micro control unit (MCU)

Operational Features

Control Mode: All outputs switch on/off simultaneously
Protection: Comprehensive protection including over voltage, over load, over heat, short circuit, and wire break - protects both primary and each secondary output
Display: LED indicators (green - Power on, yellow - Heating, red - Faults)
Cooling: AN (fanless operation)
Noise Level: ≤20dB
IP Grade: IP20
Mounting: Wall-mounted (AP)
Connection: Spring-type terminal (clamp terminal)

Reliability & Service

After Service: Modular & compatible design with common components, remote problem diagnosis for fast and effective service
Reliability: Switch on/off cycles >100,000

Certifications & Standards

Safety Standards

EN61558-1, EN61558-2-6, EN60335-1

EMC Standards

EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

Certifications

CE, UKCA
