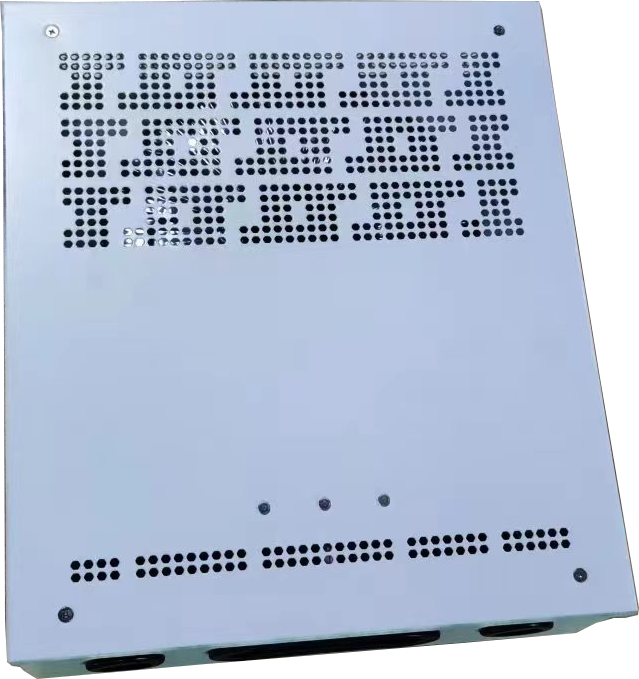

3000W Power Supply Unit with multiple control outputs (24V/30V/36V/42V/48V), featuring built-in mounting, CE certification, and SELV heating system compatibility for film, paint, and carbon applications.
Physical Specifications
Dimensions:440 × 325 × 115 mm
Weight:32 kg
Electrical Specifications
Power Range:3000 VA
Input Voltage:120V/220V/230V/240V AC (Customizable)
Output Voltage:24V/30V/36V/42V/48V AC (Customizable)
Transformer:Built-in isolated toroidal with copper/aluminum winding
Key Features
Individual output control for flexible operation
Built-in Soft Start function with zero inrush current
Integrated micro control unit (MCU) for intelligent operation
Comprehensive protection: over voltage, overload, over heat, short circuit, wire break
LED indicators for power, heating, and fault status
Fanless cooling (AN) with noise level ≤35dB
IP20 protection rating
Built-in mounting with spring-type terminal connections
Each output can be controlled individually. One thermostat can control multiple power supplies, and multiple thermostats can control different outputs within a single power supply unit.
Modular design with common components enables remote problem diagnosis and fast, effective service support for optimal uptime and maintenance efficiency.
