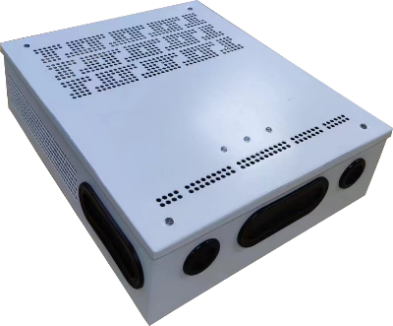

2400W PSU Transformer 24V/30V/36V/42V/48V AC Customized Built In Mounting
2400W Power Supply/PSU/Transformer with multiple control outputs and built-in mounting. CE certified with SELV heating system compatibility for film, paint, and carbon applications.
Physical Specifications
Size: 440 × 325 × 115mm
Weight: 26kg
Electrical Specifications
Power Range: 2400VA
Input Voltage: 120V/220V/230V/240V AC Customized
Output Voltage: 24V/30V/36V/42V/48V AC Customized
Transformer: Built-in isolated toroidal transformer with copper/aluminum winding, thermistor (NTC), class B/F
Inrush Current: Built-in Soft Start function, Zero inrush current
Fuse/MCB: 16A (B type), for transformer up to 3500VA
Intelligence: Integrated micro control unit (MCU)
Control & Features
Each output can be controlled individually
One thermostat can control multiple power supplies
Multiple thermostats can control different outputs in one power supply
Comprehensive protection: Over voltage, over load, over heat, short circuit, wire break
Protection covers both primary and each output in secondary of transformer
LED indicators: Green (Power on), Yellow (Heating), Red (Faults)
Cooling: AN (no fan)
Noise Level: ≤35dB
IP Grade: IP20
Mounting: Built-in mounting
Connection: Spring-type terminal (clamp terminal)
Reliability & Service
After Service: Modular & compatible design, common components, remote problem diagnosis
