Name: 1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems
Brand: Foshan Shinergy Technology Co., Ltd
SKU: SL1200-36
Availability: InStock

Home > Products > Power Supply Transformer >

1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems

Spring Type Terminal Power Supply

AP Mounting 1200W Power Supply

SELV Heating Systems 1200w PSU

Place of Origin:

China

Brand Name:

shinergy

Certification:

Model Number:

SL1200-36

Chat Now

Request A Quote

Product Details

Name:

Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Multiple Outputs, AP/on Wall, CE Cert, SELV Heating System Film/paint/carbon

Inrush Current:

Zero Inrush Current, 16A (B Type) Fuse

Transformer:

Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized

Noise Level:

AN (no Fan) Cooling, Noise Level ≤35dB

Mounting:

AP(on Wall) Mounting, Spring-type Terminal

After Service:

Module&compatible Design, Remote Problem Diagnosis

Certificate:

CE Certificate

Cooperation:

Professional Tailor-made Product, ODM

Highlight:

Spring Type Terminal Power Supply

AP Mounting 1200W Power Supply

SELV Heating Systems 1200w PSU

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Packaging Details

carbon and pallet

Delivery Time

3-4 weeks

Payment Terms

T/T

Supply Ability

10k pcs/month

SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade

Chat Now

600W Power Supply Transformer UKCA Certificated For SELV Heating Systems

Chat Now

1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems

Chat Now

SELV Heating Systems 800W Power Supply With Zero Inrush Current Customizable

Chat Now

eva.peng@fshinergy.com

Chat Now

Product Description

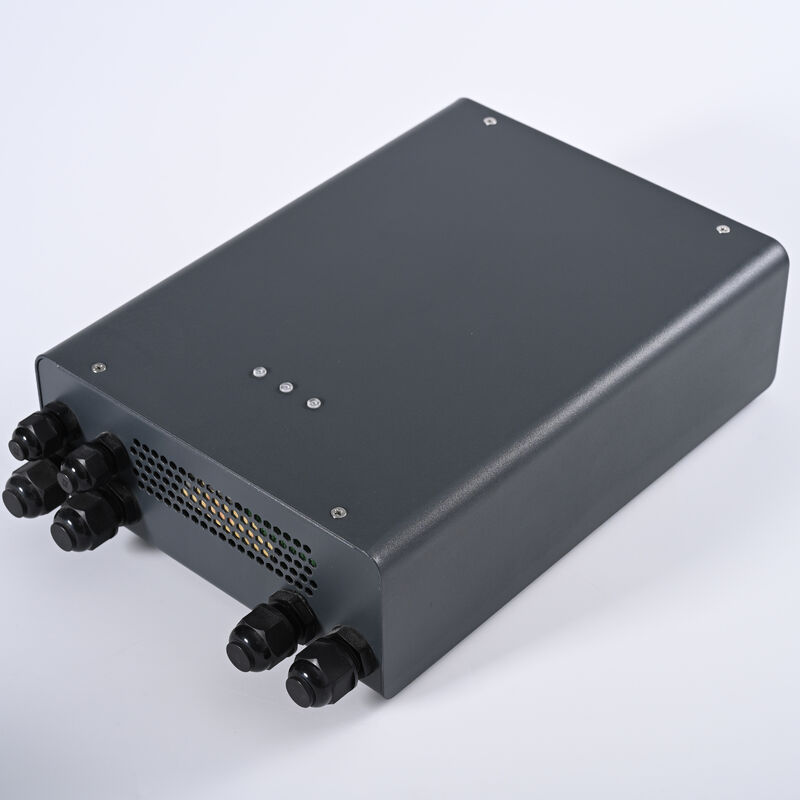

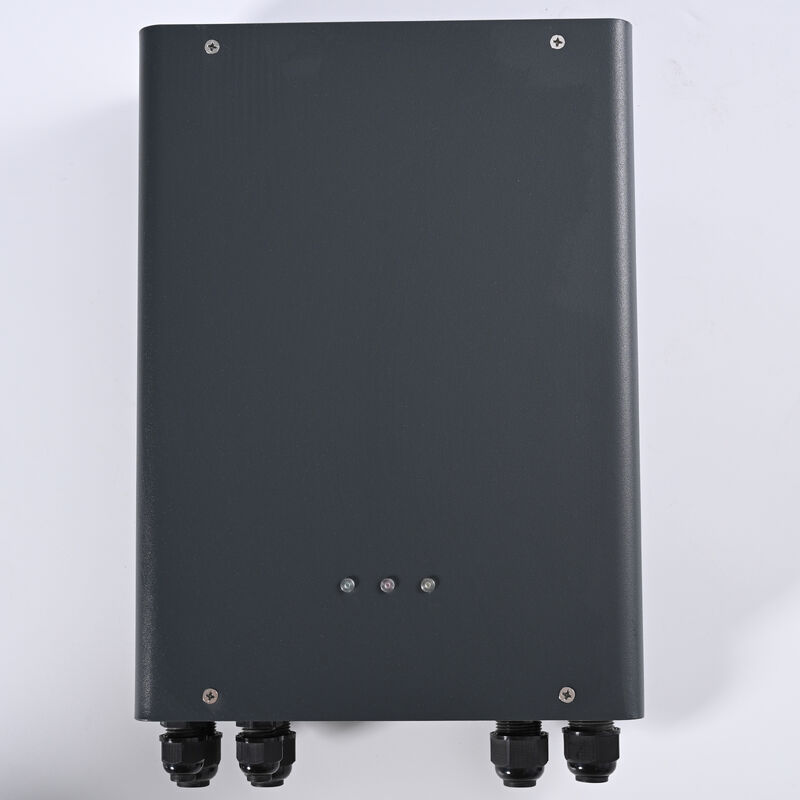

1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems

High-performance 1200W power supply unit designed specifically for SELV (Safety Extra Low Voltage) heating systems, including film, paint, and carbon heating applications. Available in multiple output voltage configurations with CE and UKCA certification.

Key Specifications

Power Range	1200VA
Dimensions	340 × 220 × 90 mm
Weight	Approximately 14 kg
Input Voltage	120V/220V/230V/240V (Customizable)
Output Voltage	24V/30V/36V/42V/48V (Customizable)

Technical Features

Built-in isolated toroidal transformer with copper or aluminum winding
Integrated thermistor (NTC) with Class B/F insulation
Soft Start function with zero inrush current
16A fuse/micro circuit breaker (B type)
Integrated micro control unit (MCU) for intelligent operation
All outputs switch on/off simultaneously
Single thermostat can control multiple power supplies

Protection & Safety Systems

Comprehensive protection: Over voltage, over load, over heat, short circuit, wire break
Protects both primary and each output in secondary transformer
LED indicators: Green (Power on), Yellow (Heating), Red (Faults)
AN cooling (fanless operation)
Noise level: ≤35dB
IP grade: IP20

Installation & Connectivity

Mounting: AP (on wall) | Connection: Spring-type terminal (clamp terminal)

Reliability & Service

Switch on/off cycles: >100,000 | Module & compatible design with common components | Remote problem diagnosis for fast, effective service

Certifications & Standards

UKCA

Safety Standards: EN61558-1, EN61558-2-6, EN60335-1
EMC Standards: EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
