SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade

SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade

1000W Power Supply Transformer

16A Fuse Power Supply Transformer

IP20 Grade PSU Transformer

Place of Origin:

China

Brand Name:

shinergy

Certification:

CE

Model Number:

SL1000L-24

Chat Now
Request A Quote
SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade
Product Details
Name:
Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Multiple Outputs, AP/on Wall, CE Cert, SELV Heating System Film/paint/carbon
Inrush Current:
Zero Inrush Current, 16A (B Type) Fuse
Transformer:
Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized
Noise Level:
AN (no Fan) Cooling, Noise Level ≤35dB
Mounting:
AP(on Wall) Mounting, Spring-type Terminal
After Service:
Module&compatible Design, Remote Problem Diagnosis
Certificate:
CE Certificate
Cooperation:
Professional Tailor-made Product, ODM
Highlight:

1000W Power Supply Transformer

,

16A Fuse Power Supply Transformer

,

IP20 Grade PSU Transformer

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Packaging Details
carbon and pallet
Delivery Time
3-4 weeks
Payment Terms
T/T
Supply Ability
10k pcs/month
RELATED PRODUCTS
Good price SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade online

SELV Heating Systems 1000W Power Supply Transformer 16A Fuse IP20 Grade

Chat Now
Good price 600W Power Supply Transformer UKCA Certificated For SELV Heating Systems online

600W Power Supply Transformer UKCA Certificated For SELV Heating Systems

Chat Now
Good price 1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems online

1200W Power Supply AP Mounting Spring Type Terminal For SELV Heating Systems

Chat Now
Good price SELV Heating Systems 800W Power Supply With Zero Inrush Current Customizable online

SELV Heating Systems 800W Power Supply With Zero Inrush Current Customizable

Chat Now
CONTACT US
eva.peng@fshinergy.com
Chat Now
Product Description

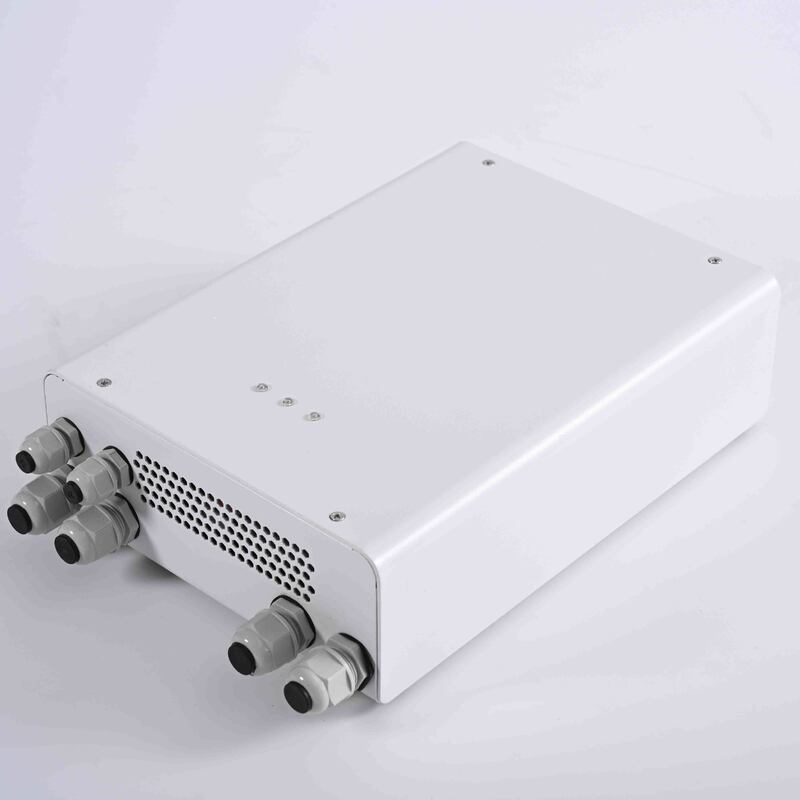

SELV Heating Systems 1000W Power Supply Transformer
High-performance 1000W power supply unit designed for SELV heating systems including film, paint, and carbon applications. Available in multiple output voltages with CE and UKCA certification.
Key Specifications
Power Range1000VA
Dimensions340 × 220 × 90 mm
WeightApproximately 12 kg
Input Voltage120V/220V/230V/240V (Customizable)
Output Voltage24V/30V/36V/42V/48V (Customizable)
Fuse Rating16A fuse/micro circuit breaker (B type)
IP RatingIP20
Technical Features
  • Built-in isolated toroidal transformer with copper or aluminum winding
  • Integrated thermistor (NTC), Class B/F insulation
  • Soft Start function with zero inrush current
  • Integrated micro control unit (MCU) for intelligent operation
  • All outputs switch on/off simultaneously
  • Single thermostat can control multiple power supplies
Protection & Safety Features
  • Comprehensive protection: Over voltage, over load, over heat, short circuit, wire break
  • Protects both primary and each output in secondary transformer
  • LED indicators: Green (Power on), Yellow (Heating), Red (Faults)
  • AN cooling (fanless operation)
  • Noise level: ≤35dB
Installation & Connectivity
Mounting: AP (on wall) | Connection: Spring-type terminal (clamp terminal)
Reliability & Service
Switch on/off cycles: >100,000 | Module & compatible design with common components | Remote problem diagnosis for fast, effective service
Certifications & Standards
CE UKCA
Safety Standards: EN61558-1, EN61558-2-6, EN60335-1
EMC Standards: EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3
