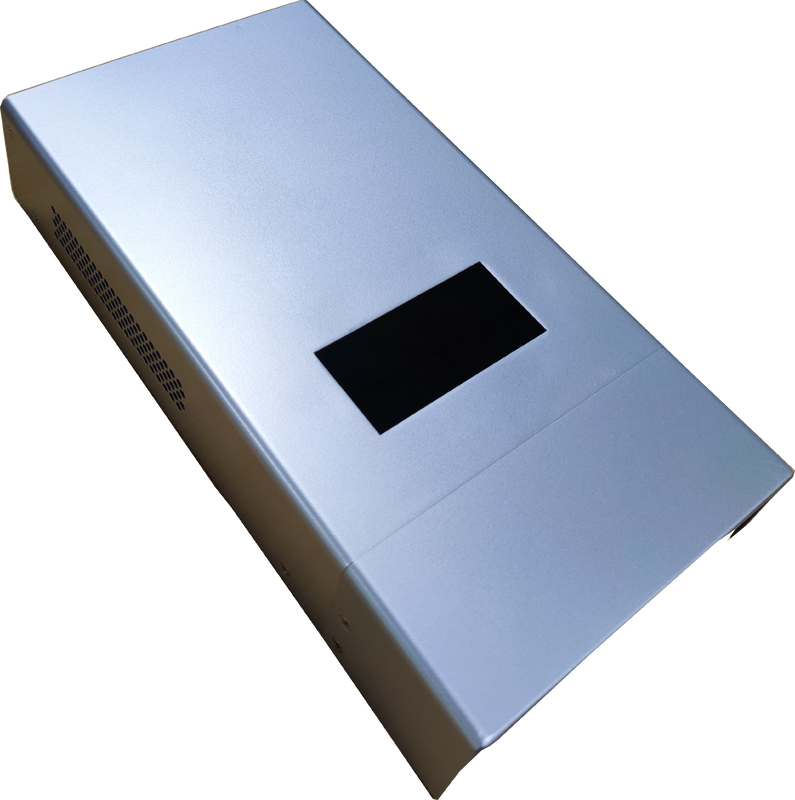

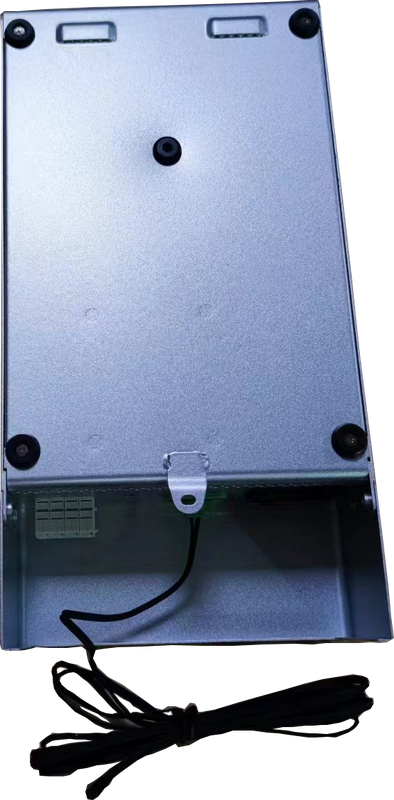

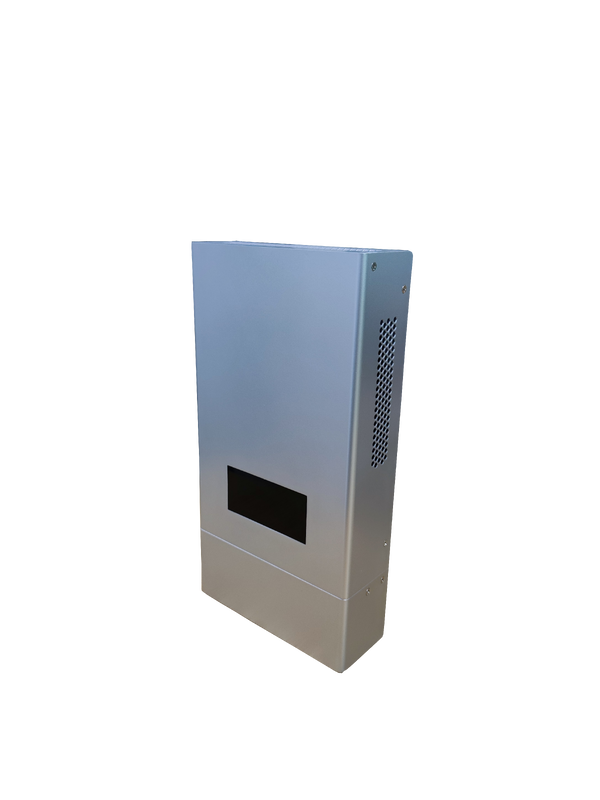

Name: 400W DIY Power Supply PSU AP / On Wall For SELV Heating System Film / Paint / Carbon
Brand: Foshan Shinergy Technology Co., Ltd
SKU: SL400-36/2D
Availability: InStock

Home > Products > DIY Transformer >

400W DIY Power Supply PSU AP / On Wall For SELV Heating System Film / Paint / Carbon

DIY Power Supply PSU

400W Power Supply PSU

SELV Heating System Power Supply

Place of Origin:

Brand Name:

shinergy

Certification:

Model Number:

SL400-36/2D

Chat Now

Request A Quote

Product Details

Name:

Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Multiple Outputs, AP/on Wall (DIY), CE Cert, SELV Heating System Film/paint/carbon

Transformer::

Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized

Cooling::

AN (no Fan) , Noise Level ≤35dB

Mounting::

AP/on Wall（DIY), Spring-type Terminal

After Service::

Module&compatible Design, Remote Problem Diagnosis

Certificate::

CE Certificate

Cooperation::

Professional Tailor-made Product, ODM

Highlight:

DIY Power Supply PSU

400W Power Supply PSU

SELV Heating System Power Supply

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Packaging Details

carton and pallet

Delivery Time

3-5 weeks

Payment Terms

T/T

Supply Ability

10k pcs/month

AP / On Wall DIY Transformer 24V 30V 36V 42V 48V Multiple Outputs 250W

Chat Now

300W Power Supply Transformer 24V 30V 36V 42V 48V AP / On Wall DIY

Chat Now

350W PSU Transformer 24V 30V 36V 42V 48V AP / On Wall For SELV Heating System

Chat Now

400W DIY Power Supply PSU AP / On Wall For SELV Heating System Film / Paint / Carbon

Chat Now

eva.peng@fshinergy.com

Chat Now

Product Description

400W DIY Power Supply for SELV Heating Systems

Professional 400W power supply unit (PSU) designed specifically for SELV heating system films, paints, and carbon applications. Features multiple output voltage options and wall-mounted DIY installation.

Product Specifications

Physical Dimensions	370 × 200 × 80 mm
Weight	6.5 kg
Power Rating	400VA
Input Voltage	120V/220V/230V/240V AC (Customizable)
Output Voltage	24V/30V/36V/42V/48V AC (Customizable)

Technical Features

Transformer: Built-in isolated toroidal transformer with copper/aluminum winding (customizable), thermistor (NTC), Class B/F
Inrush Current Limitation: Built-in Soft Start function with zero inrush current
Intelligence: Integrated micro control unit (MCU) for smart operation
Control Mode: All outputs switch on/off simultaneously
Cooling: AN (fanless) design
Noise Level: ≤35dB
IP Rating: IP20
Mounting: AP/on wall (DIY installation)
Connection: IEC plug for input, wiring-type terminal (clamp terminal) for output

Protection & Monitoring

Over voltage protection
Over load protection
Over heat protection
Short circuit protection
Wire break protection
LED indicators: Green (Power on), Yellow (Heating), Red (Faults)

Reliability & Service

Switch Cycles: >100,000 on/off operations

Service Features: Modular & compatible design, common components, remote problem diagnosis, fast and effective service support

Standards & Certifications

Safety Standards: EN61558-1, EN61558-2-6, EN60335-1

EMC Standards: EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

Certifications: CE, UKCA
