Name: SELV Heating System AP Transformer 3000W 24V 30V 36V 42V 48V
Brand: Foshan Shinergy Technology Co., Ltd
SKU: SL3000-30/3M
Availability: InStock

Home > Products > AP Transformer >

SELV Heating System AP Transformer 3000W 24V 30V 36V 42V 48V

SELV Heating System AP Transformer

AP Transformer 3000W

36V AP Power Supply

Place of Origin:

Brand Name:

shinergy

Certification:

Model Number:

SL3000-30/3M

Chat Now

Request A Quote

Product Details

Name:

Power Supply/PSU/Transformer, 24V/30V/36V/42V/48V, Multiple Control&outputs, AP/on Wall, CE Cert, SELV Heating System Film/paint/carbon

Controlling::

Each Output Can Be Controled Individually

Inrush Current::

Zero Inrush Current, 16A (B Type) Fuse

Transformer::

Built-in Isolated Toroidal Transformer With Copper Winding Or Aluminum Winding Customized

Cooling::

AN (no Fan) , Noise Level ≤35dB

Mounting::

AP(on Wall) Mounting, Spring-type Terminal

After Service::

Module&compatible Design, Remote Problem Diagnosis

Certificate::

CE Certificate

Cooperation::

Professional Tailor-made Product, ODM

Highlight:

SELV Heating System AP Transformer

AP Transformer 3000W

36V AP Power Supply

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Packaging Details

carton and pallet

Delivery Time

3-5 weeks

Payment Terms

T/T

Supply Ability

5k pcs/month

3200W AP Transformer 24V 30V 36V 42V 48V Multiple Control / Outputs

Chat Now

3500W AP Power Supply 24V 30V 36V 42V 48V For SELV Heating System Film / Paint / Carbon

Chat Now

Multiple Control / Outputs AP Transformer 3000W CE Certificated 24V 30V 36V 42V 48V

Chat Now

AP / On Wall Power Supply Transformer 2400W Built In Isolated Toroidal Transformer

Chat Now

eva.peng@fshinergy.com

Chat Now

Product Description

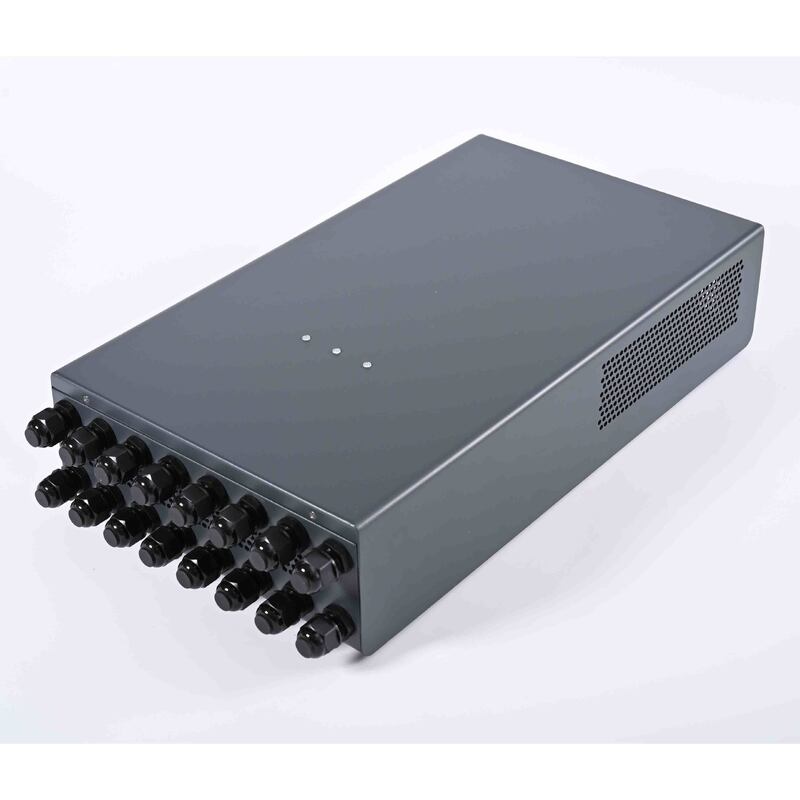

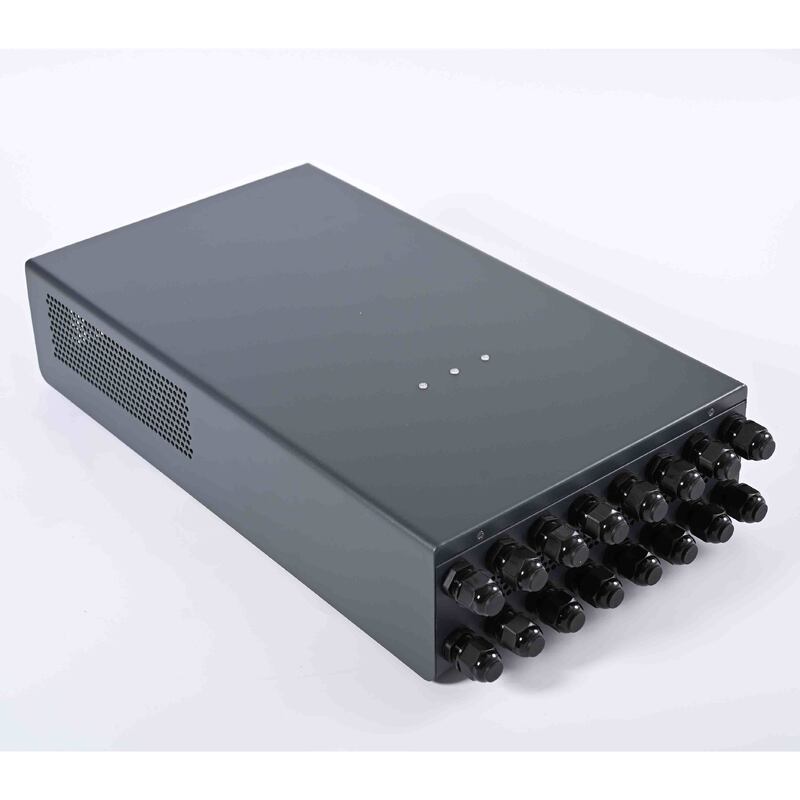

SELV Heating System AP Transformer 3000W

3000W Power Supply/PSU/Transformer with multiple control outputs, available in 24V/30V/36V/42V/48V configurations. AP wall-mounted design with CE certification, specifically designed for SELV heating system applications including film, paint, and carbon heating solutions.

Dimensions	560 × 300 × 140 mm
Weight	Approximately 31 kg
Power Range	3000 VA

Electrical Specifications

Input Voltage	120V/220V/230V/240V AC (Customizable)
Output Voltage	24V/30V/36V/42V/48V AC (Customizable)
Transformer	Built-in isolated toroidal transformer with copper or aluminum winding (Customizable), includes thermistor (NTC), Class B/F
Inrush Current Limitation	Built-in Soft Start function, Zero inrush current
Fuse/MCB	16A (B type), suitable for transformers up to 3500VA
Intelligence	Integrated micro control unit (MCU)

Control & Protection Features

Control Mode	Individual output control, multiple thermostat compatibility, flexible heating zone management
Protection	Over voltage, over load, over heat, short circuit, wire break protection for both primary and secondary transformer circuits
Display	LED indicators: Green (Power on), Yellow (Heating), Red (Faults)
Cooling	AN (no fan)
Noise Level	≤ 35 dB
IP Grade	IP20
Mounting	AP (wall-mounted)
Connection	Spring-type terminal (clamp terminal)

Reliability & Service

Switch on/off cycles: > 100,000

Modular & compatible design with common components

Remote problem diagnosis capability

Fast and effective service support

Certifications & Standards Compliance

Safety Standards

EN61558-1, EN61558-2-6, EN60335-1

EMC Standards

EN55014-1, EN55014-2, EN61000-3-2, EN61000-3-3

Certifications

CE, UKCA
